  • 水
  • 空气和真空
  • 冷却液
  • 热油
  • 蒸汽
  • 液压油

水

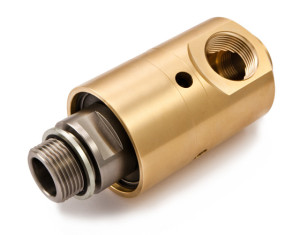

Rotoflux Universale

50 bar – 725 PSI
95°C – 203°F
3.500 RPM
¼” ÷ 2”
Pass. 1 ÷ 2

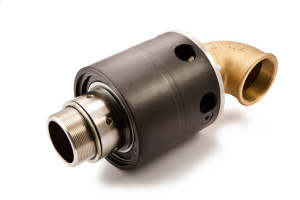

Rotoflux Large Capacity

10 bar – 145 PSI
95°C – 203°F
750 RPM
2 ½” ÷ 5”
Pass. 1 ÷ 2

Rotoflux for Printing Machines

50 bar – 725 PSI
95°C – 203°F
7.000 RPM
3/8” ÷ ½”
Pass. 2

Rotoflux for Printing Machine

50 bar – 725 PSI
95°C – 203°F
7.000 RPM
½” ÷ 3/4”
Pass. 2

Rotoflux Simple

50 bar – 725 PSI
95°C – 203°F
2.500 RPM
1 ¼” ÷ 2”
Pass. 1 ÷ 2

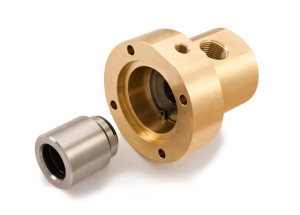

Rotoflux Low Torque

16 bar – 232 PSI
95°C – 203°F
5.000 RPM
½” ÷ 3/4”
Pass. 1-2

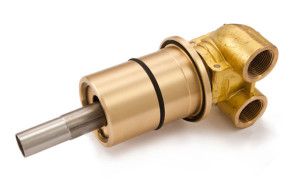

Rotoflux fof Continuos Casting Applications

10 bar – 145 PSI
120°C – 245°F
100 RPM
3/4” ÷ 1 ½”
Pass. 1 ÷ 2

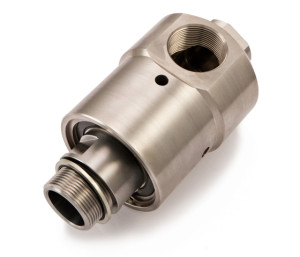

Rotoflux Stainless Steel Unions

50 bar – 725 PSI
95°C – 203°F
3.500 RPM
¼” ÷ 2”
Pass. 1 ÷ 2

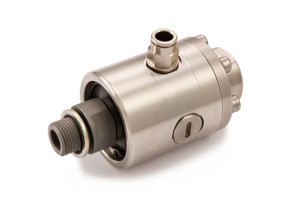

Series C - Rotoflux for High Pressure High Speed Applications

400 bar – 5.800 PSI
90°C – 195°F
1.500 RPM
1/4” ÷ 3/4”
Pass. 1

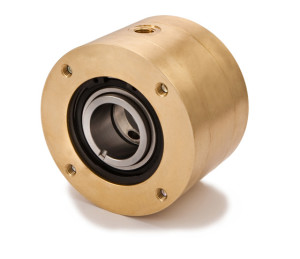

Series R - Around the Shaft Union for Water, Air, Vacuum, Hydraulic Oil

20 bar – 290 PSI
90°C – 195°F
750 RPM
¼”
Pass. 1

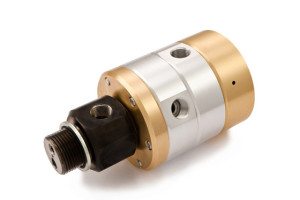

Series M - Double Passage for High Pressure and Low Speed

10 bar – 145 PSI
90°C – 195°F
250 RPM
3/8” ÷ 3/4”
Pass. 2

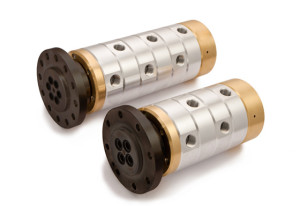

Serie M - Rotoflux 2-4-6 Passages for High Pressure and Low Speed

10 bar – 145 PSI
90°C –195°F
250 RPM
3/8”
Pass. 2 – 4 – 6

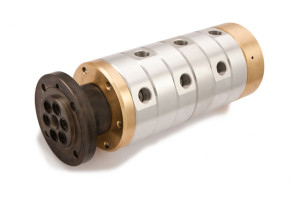

Series M - 2-4-6 Passages with Straight Centre Bore

10 bar – 145 PSI
90°C – 195°F
200 RPM
3/8”
Pass. 2-4-6-8

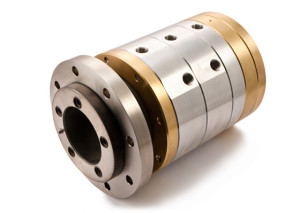

Series M - 5 Passages with Centre Bore

10 bar – 145 PSI
90°C – 195°F
80 RPM
3/8”
Pass. 5

空气和真空

Series M - 5 Passages with Centre Bore

10 bar – 145 PSI (AIR)
90°C – 195°F
80 RPM
3/8”
Pass. 5

Series M - 2-4-6 Passages with Straight Centre Bore

10 bar – 145 PSI (AIR)
90°C – 195°F
200 RPM
3/8”
Pass. 2-4-6-8

Serie M - Rotoflux 2-4-6 Passages for High Pressure and Low Speed

10 bar – 145 PSI (AIR)
90°C – 195°F
250 RPM
3/8”
Pass. 2-4-6

Series M - Double Passage for High Pressure and Low Speed

10 bar – 145 PSI (AIR)
90°C – 195°F
250 RPM
3/8”÷ 3⁄4”
Pass. 2

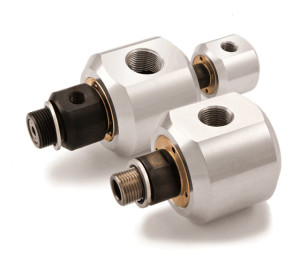

Serie M - Rotoflux for High speed and Low Speed Single double

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
90°C – 195°F
300 RPM
1/4” ÷ 3⁄4”
Pass. 1- 2

Series R - Around the Shaft Union for Water, Air, Vacuum, Hydraulic Oil

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
90°C – 195°F
750 RPM
1/4”
Pass. 1

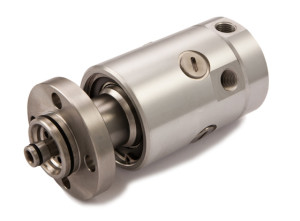

Rotoflux Double Passage for Two Different Fluids

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
90°C – 195°F
5.000 RPM
1/4”
Pass. 2

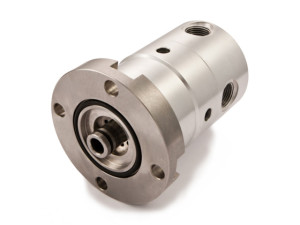

Rotoflux double passage for Air, Vacuum, Hydraulic Oil

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
90°C – 195°F
1.500 RPM
1/2”
Pass. 2

Rotoflux Stainless Steel Unions

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
95°C 203°F
3.500 RPM
1/4” ÷ 2”
Pass. 1

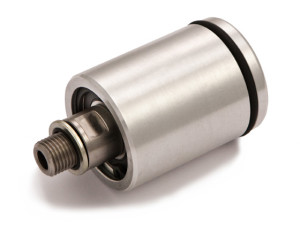

Rotoflux in the Shaft Mounting

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
95°C – 203°F
3.500 RPM
1/8” ÷ 1/2”
Pass. 1

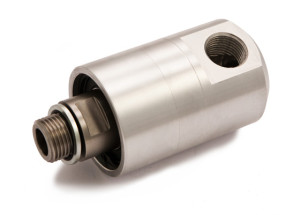

Rotoflux for Air, Vacuum, Hydraulic Oil

10 bar – 145 PSI (AIR)
7 kPa – 2” Hg
120°C – 245°F
3.500 RPM
1/8” ÷ 2”
Pass. 1

冷却液

Rotoflux Double Passage for Two Different Fluids

40 bar – 580 PSI
90°C – 195°F
5.000 RPM
1⁄4”
Pass. 2

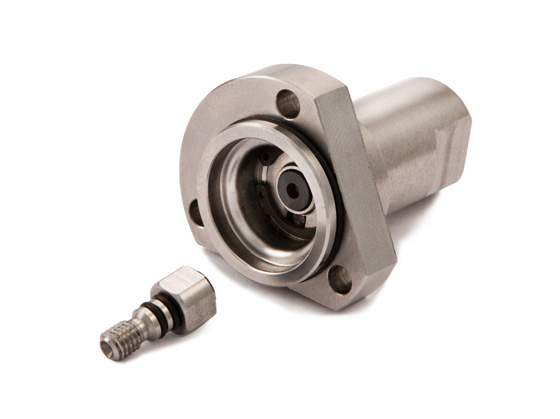

serie-special-high-speed-machine-tool-applications-k3

100 bar –1.450 PSI
90°C – 195°F
30.000 RPM
1/4” ÷ 3/8”
Pass. 1

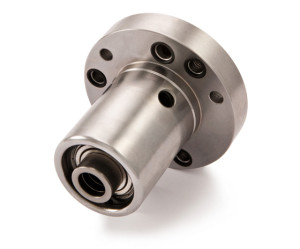

Rotoflux Special Series - High Speed Machine Tool Applications

100 bar – 1.450 PSI
90°C – 195°F
30.000
1/4” ÷ 3/8”
Pass. 1

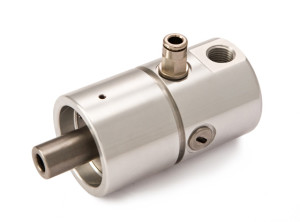

Rotoflux for High Speed and Dry Run, Machine Tools Applications

100 bar – 1.450 PSI
90°C – 195°F
30.000 RPM
1⁄4”
Pass. 1

Rotoflux for High Speed and Dry Run, Machine Tools Applications

100 bar – 1.450 PSI
90°C – 195°F
30.000 RPM
1/4”
Pass. 1

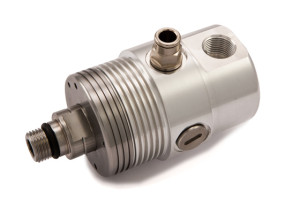

Rotoflux for High Speed, Coolant, Air, Dry Run

100 bar – 1.450 PSI
90°C – 195°F
20.000 RPM
1/4” ÷ 3/8”
Pass. 1

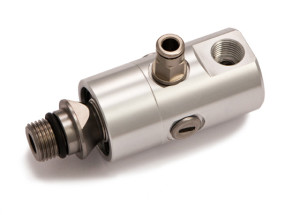

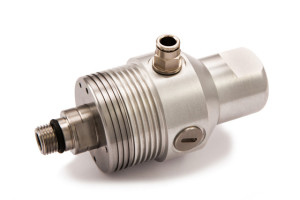

Rotoflux for High Speed Application and Dry Run

100 bar – 1.450 PSI
90°C – 195°F
20.000 RPM
1⁄4” ÷ 3/8”
Pass. 1

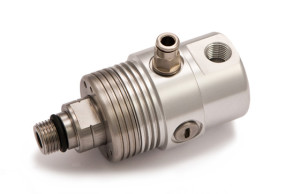

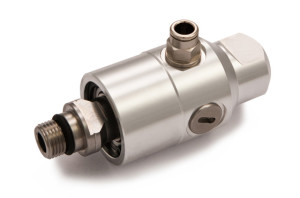

Rotoflux for High Speed Application

100 bar – 1.450 PSI
90°C – 195°F
20.000 RPM
1/4” ÷ 3/8”
Pass. 1

Rotoflux for High Speed, Coolant, Air, Dry Run

100 bar – 1.450 PSI
90°C – 195°F
15.000 RPM
1/4” ÷ 3/8”
Pass. 1

Rotoflux for High Speed Application and Dry Run

100 bar – 1.450 PSI
90°C – 195°F
15.000 RPM
1⁄4” ÷ 3/8”
Pass. 1

Rotoflux for High Speed Application

100 bar – 1.450 PSI
90°C – 195°F
15.000 RPM
1/4” ÷ 3/8”
Pass. 1

热油

Rotoflux for High Temperature

6 bar – 87 PSI
340°C – 645°F
500 RPM
3/4” ÷ 2”
Pass. 1 – 2

蒸汽

Rotoflux for High Temperature

10 bar – 145 PSI
185°C – 365°F
300 RPM
3/4” ÷ 2”
Pass. 1 – 2

液压油

Series M - 5 Passages with Centre Bore

250 bar – 3.625 PSI
90°C – 195°F
80 RPM
3/8”
Pass. 5

Series M - 2-4-6 Passages with Straight Centre Bore

250 bar – 3.625 PSI
90°C – 195°F
200 RPM
3/8”
Pass. 2-4-6-8

Serie M - Rotoflux 2-4-6 Passages for High Pressure and Low Speed

250 bar – 3.625 PSI
90°C –195°F
250 RPM
3/8” Pass.2–4-6

Series M - Double Passage for High Pressure and Low Speed

250 bar – 3.625 PSI
90°C – 195°F
250 RPM
3/8” ÷ 3⁄4”
Pass. 2

Serie M - Rotoflux for High speed and Low Speed Single double

300 bar – 4.350 PSI
90°C – 195°F
300 RPM
1/4” ÷ 3/4”
Pass. 1-2

Series R - Around the Shaft Union for Water, Air, Vacuum, Hydraulic Oil

20 bar – 290 PSI
90°C – 195°F
750 RPM
1⁄4”
Pass. 1

Series C - Rotoflux for High Pressure High Speed Applications

400 bar – 5.800 PSI
90°C – 195°F
1.500 RPM
1/4” ÷ 3/4”
Pass. 1

Rotoflux Double Passage for Two Different Fluids

70 bar – 1.015 PSI
90°C – 195°F
5.000 RPM
1⁄4”
Pass. 2

Rotoflux double passage for Air, Vacuum, Hydraulic Oil

10 bar – 145 PSI
90°C – 195°F
3.500 RPM
1/2”
Pass. 2

Rotoflux Stainless Steel Unions

10 bar – 145 PSI (AIR)
95°C 203°F
3.500 RPM
1/4” ÷ 2”
Pass. 1

Rotoflux in the Shaft Mounting

50 bar – 145 PSI (AIR)
95°C 203°F
3.500 RPM
1/8” ÷ 1/2”
Pass. 1

Rotoflux for Air, Vacuum, Hydraulic Oil

50 bar – 725 PSI
95°C – 203°F
3.500 RPM
1/8” ÷ 2”
Pass. 1
