Series H – Rotoflux Simple

These unions are available with two different balanced and microlapped sealing assemblies:

  • N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.
  • D Seal (Heavy duty sealing) with carbide to carbide seals for poor filtrated.

Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C). Do not use the unions at max application limits without consulting ROTOFLUX.


Acqua – Water – Wasser – Agua ¼” ÷ 1½” – 50 bar / 725 PSI
2″ – 40 bar / 580 PSI
95°C / 203°F ¼” ÷ 1½” – 2.500
2″ – 750

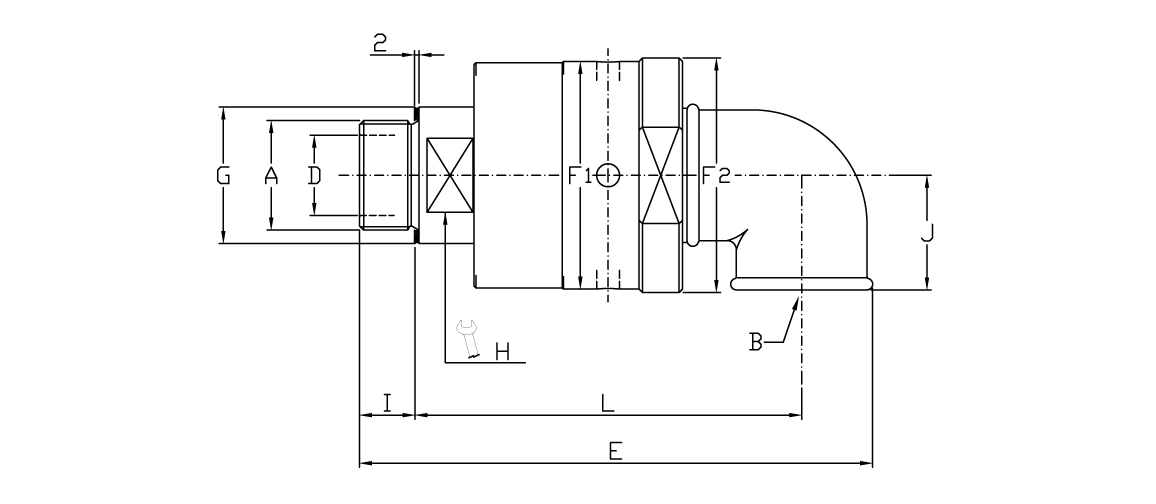

Ordering code Giunti a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a vía simple
N seal D seal A B ø D E ø F1 ø F2 ø G H I J L Kg
H32-1300-01R H32-1301-01R G 1 1/4″ RH G 1 1/4″ 31 202 85 88 55 46 22 45 152 2,7
H32-1300-02L H32-1301-02L G 1 1/4″ LH
H40-1300-01R H40-1301-01R G 1 1/2″ RH G 1 1/2″ 36 224 93 98 60 50 24 50 169 4,2
H40-1300-02L H40-1301-02L G 1 1/2″ LH
H50-1300-01R H50-1301-01R G 2″  RH G 2″ 48 237 112 114 70 60 25 55 175 7
H50-1300-02L H50-1301-02L G 2″  LH
Ordering code Giunti a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a vía simple
N seal D seal B ø D E ø F1 ø F2 J L ø M ø N ø P h7 Q R S Kg
H32-1300-03F H32-1301-03F G 1 1/4″ 31 204 85 88 45 166 94 70 44 8 12 11 3,4
H40-1300-03F H40-1301-03F G 1 1/2″ 36 219 93 98 50 125 99 78 52 10 14 11 4,7
H50-1300-03F H50-1301-03F G 2″ 48 239 112 114 55 190 119 95 65 10 14 11 7,7
Ordering code Giunti due passaggi sifone fisso – Double passage stationary siphon unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo
N seal D seal A B ø D E ø F1 ø F2 ø G H I L T U V W Kg
H32-1300-01R-800 H32-1301-01R-800 G 1 1/4″ RH G 3/4″ 31 211 85 88 55 46 22 112 145 16 G 1/2″ G 3/4″ 3,3
H32-1300-02L-800 H32-1301-02L-800 G 1 1/4″ LH
H40-1300-01R-800 H40-1301-01R-800 G 1 1/2″ RH G 1″ 36 243 93 98 60 50 24 126 164 18 G 3/4″ G 1″ 4,6
H40-1300-02L-800 H40-1301-02L-800 G 1 1/2″ LH
H50-1300-01R-800 H50-1301-01R-800 G 2″  RH G 1 1/4″ 48 266 112 114 70 60 25 131 179 20 G 1″ G 1 1/4″ 7,3
H50-1300-02L-800 H50-1301-02L-800 G 2″  LH
Ordering code Giunti due passaggi sifone rotante – Double passage rotating siphon unions – Zweiwege für drehendes Siphonrohr – Doble vía con sifón rotativo
N seal D seal A B ø D E ø F1 ø F1 ø G H I L T U ø V h9 W Kg
H32-1300-01R-810 H32-1301-01R-810 G 1 1/4″ RH G 3/4″ 31 211 85 88 55 46 22 112 149 26 21,8 G 3/4″ 3,3
H32-1300-02L-810 H32-1301-02L-810 G 1 1/4″ LH
H40-1300-01R-810 H40-1301-01R-810 G 1 1/2″ RH G 1″ 36 243 93 98 60 50 24 126 170 30 25,8 G 1″ 4,6
H40-1300-02L-810 H40-1301-02L-810 G 1 1/2″ LH
H50-1300-01R-810 H50-1301-01R-810 G 2″  RH G 1 1/4″ 48 266 112 114 70 60 25 131 184 34 32 G 1 1/4″ 7,3
H50-1300-02L-810 H50-1301-02L-810 G 2″  LH
Ordering code Giunti due passaggi sifone fisso – Double passage stationary siphon unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo
N seal D seal B ø D E ø F1 ø F2 L ø M ø N ø P h7 Q R S T U V W Kg
H32-1300-03F-800 H32-1301-03F-800 G 3/4″ 31 213 85 88 126 94 70 44 8 12 11 159 16 G 1/2″ G 3/4″ 3,9
H40-1300-03F-800 H40-1301-03F-800 G 1 “ 36 238 93 98 133 99 78 52 10 14 11 172 18 G 3/4″ G 1 “ 5,1
H50-1300-03F-800 H50-1301-03F-800 G 1 1/4″ 48 267 112 114 146 119 95 65 10 14 11 194 20 G 1 “ G 1 1/4″ 8

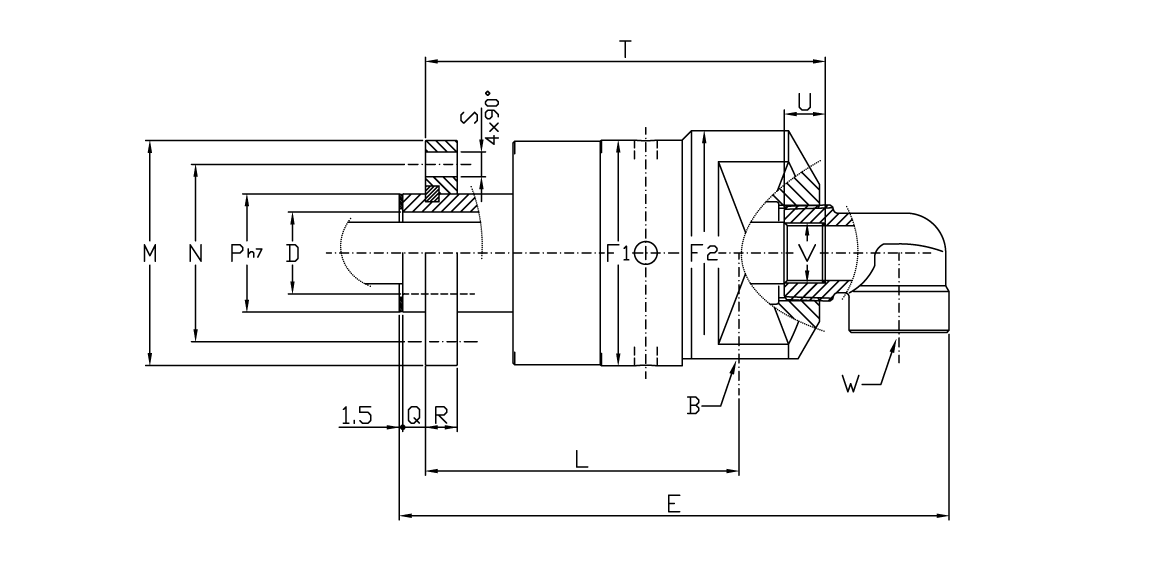

Ordering code Giunti due passaggi sifone rotante – Double passage rotating siphon unions – Zweiwege für drehendes Siphonrohr – Doble vía con sifón rotativo
N seal D seal B ø D E ø F1 F2 L ø M ø N ø P h7 Q R S T U ø V h9 W Kg
H32-1300-03F-810 H32-1301-03F-810 G 3/4″ 31 213 85 88 126 94 70 44 8 12 11 163 26 21,8 G 3/4″ 3,9
H40-1300-03F-810 H40-1301-03F-810 G 1 “ 36 238 93 98 133 99 78 52 10 14 11 177 30 25,8 G 1 “ 5,1
H50-1300-03F-810 H50-1301-03F-810 G 1 1/4″ 48 267 112 114 146 119 95 65 10 14 11 199 34 30 G 1 1/4″ 8
