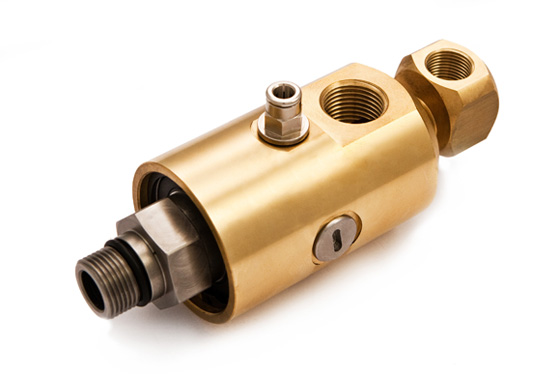

Series S – Rotoflux for Printing Machines
These unions are available with two different balanced and microlapped sealing assemblies:
- N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.
Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C). Do not use the unions at max application limits without consulting ROTOFLUX.
 |
 |
 |
|
|---|---|---|---|
| Acqua – Water -Wasser – Agua | 50 bar / 725 PSI | 95°C / 203°F | 3.500/5.000 |
| Ordering code | Giunti due passaggi sifone fisso – Double passage stationary siphon unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo | ||||||||||||||||
| Water | A | B1 | B2 | D | E | F | H | I | L | M | N | O | P | Q | R | S H8 | Kg |
| S15-1292-25R-840 | M20 X 1,5 RH | G 1/2″ | G 3/8″ | 13 | 149 | 55 | SW 30 | 19 | 79,5 | 13 | 51,5 | 39,5 | 21 | 5 | 116 | 10 | 1,5 |
| S15-1292-26L-840 | M20 X 1,5 LH | ||||||||||||||||
| S15-1292-04R-840 | M20 X 1,5 RH | G 1/2″ | G 3/8″ | 13 | 149 | 55 | SW 30 | 19 | 79,5 | 13 | 51,5 | 39,5 | 22 | 5 | 116 | 10 | 1,5 |
| S15-1292-05L-840 | M20 X 1,5 LH | ||||||||||||||||
| S20-1292-25R-840 | M27 X 1,5 RH | G 3/4″ | G 1/2″ | 18 | 174 | 64 | SW 36 | 21 | 92 | 16 | 57,5 | 46 | 28 | 6 | 133 | 13 | 2,1 |
| S20-1292-26L-840 | M27 X 1,5 LH | ||||||||||||||||

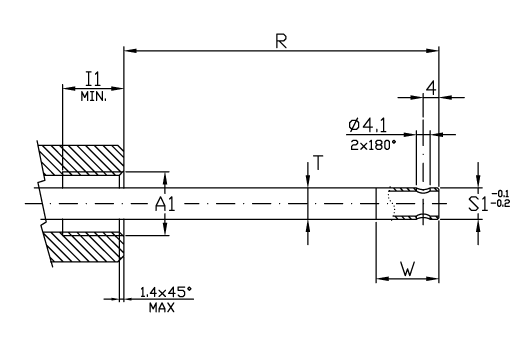

| Interfaccia cliente – Customer interface – Montageanweisungen – Montaje de la junta | ||||||||
| A1 | I1 | ø P1 H7 | Q1 | R | S1 | ø T | W | |
| S15-1292-25R-840 | M20 X 1,5 RH | 20 | 21 | 8.5 | 116 | 10 | 10 X 1 | 26 |
| S15-1292-26L-840 | M20 X 1,5 LH | |||||||
| S15-1292-04R-840 | M20 X 1,5 RH | 20 | 22 | 8.5 | 116 | 10 | 10 X 1 | 26 |
| S15-1292-05L-840 | M20 X 1,5 LH | |||||||
| S20-1292-25R-840 | M27 X 1,5 RH | 22 | 28 | 10 | 133 | 13 | 13 X 1 | 28 |
| S20-1292-26L-840 | M27 X 1,5 LH | |||||||
| Ordering code | Giunti due passaggi sifone fisso – Double passage stationary siphon unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo | ||||||||||||||
| Water | A = A1 | B1 | B2 | ø D | E | ø F | H | I | L | M | N | O | R | ø S H8 | Kg |
| S15-1292-23R-840 | G 1/2″ RH | G 1/2″ | G 3/8″ | 13 | 145 | 55 | SW 30 | 13 | 81,5 | 15 | 53,5 | 39,5 | 118 | 10 | 1,5 |
| S15-1292-24L-840 | G 1/2″ LH | ||||||||||||||
| S20-1292-23R-840 | G 3/4″ RH | G 3/4″ | G 1/2″ | 18 | 171 | 64 | SW 36 | 16 | 94 | 18 | 59,5 | 46 | 135 | 13 | 2,1 |
| S20-1292-24L-840 | G 3/4″ LH | ||||||||||||||
| Interfaccia cliente – Customer interface – Montageanweisungen – Montaje de la junta | ||||||
| A1 | I1 | R | ø S1 | ø T | W | |
| S15-1292-23R-840 | G 1/2″ RH | 20 | 118 | 10 | 10 x 1 | 26 |
| S15-1292-24L-840 | G 1/2″ LH | |||||
| S20-1292-23R-840 | G 3/4″ RH | 20 | 135 | 13 | 13 x 1 | 28 |
| S20-1292-24L-840 | G 3/4″ LH | |||||
