Series B – Rotoflux for High Speed Application

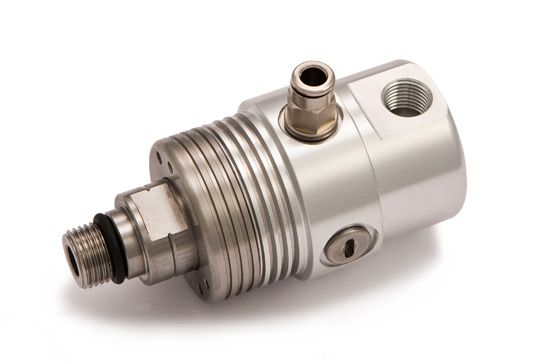

The unions of the model B are used for the passage of coolant through the machine tool spindles rotating at high speed.
Well balanced seal assemblies, in carbide, against carbide allow a low friction torque and long life even with a poor filtration of the coolant.
Do not use the unions at max application limits without consulting ROTOFLUX.
| Model |  |
 |
 |
 |
|
|---|---|---|---|---|---|
| Lubrorefrigerante | Coolant | B08 | 100 bar / 1.450 PSI | 90°C / 195°F | 20.000 | 60 μ (MAX 100) |
| Kuhlschmiermittel | Liquide Frigeradordo | B10 | 70 bar / 1.015 PSI | 15.000 | ||
| Rotazione a secco | Dry run | B08 | / | / | NO | / |
| Trockenlauf | Rotaciones en seco | B10 |

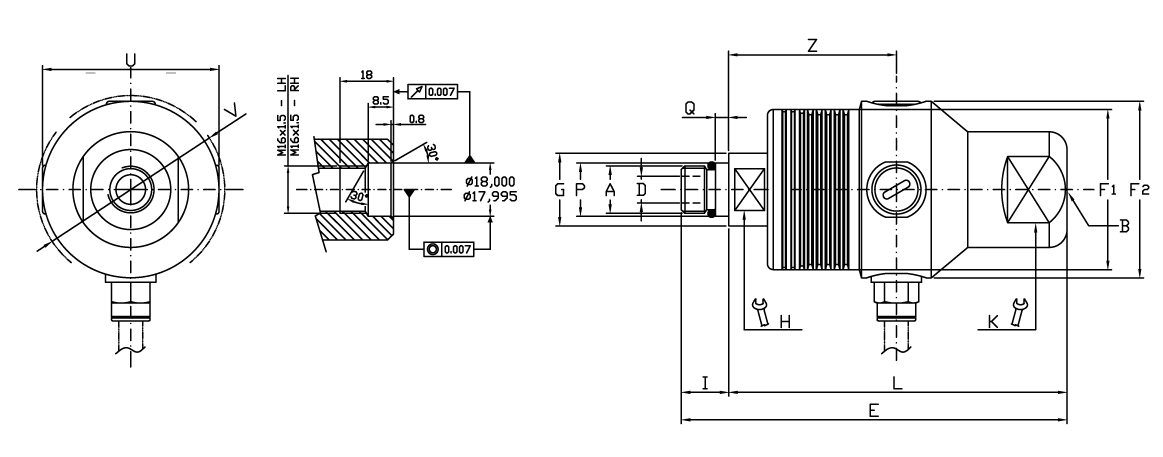

| Ordering code | Giunti radiali – 90° Unions – Radiale Drehdurchführungen – Juntas radiales | |||||||||||||||
| A | B | ø D | E | ø F1 | ø F2 | ø G | H | I | L | ø P | Q | U | ø V | Z | Kg | |
| B08-1301-04R | M16 X 1,5 RH | G 1/4″ | 5 | 101 | 44 | 49 | 24,5 | 17 | 16 | 76 | 18 | 4,5 | 49 | 52 | 49 | 0,6 |
| B08-1301-05L | M16 X 1,5 LH | |||||||||||||||
| B10-1301-04R | M16 X 1,5 RH | G 3/8″ | 9 | 115 | 54 | 59,5 | 24,5 | 17 | 16 | 87 | 18 | 4,5 | 59,5 | 63 | 56,5 | 0,8 |
| B10-1301-05L | M16 X 1,5 LH | |||||||||||||||
| Ordering code | Giunti assiali – Straight through Unions – Axiale Drehdurchführungen – Juntas axiales | ||||||||||||||||
| A | B | ø D | E | ø F1 | ø F2 | ø G | H | K | I | L | ø P | Q | U | ø V | Z | Kg | |
| B08-1302-04R | M16 X 1,5 RH | G 1/4″ | 5 | 116 | 44 | 49 | 24,5 | 17 | 24 | 16 | 100 | 18 | 4,5 | 49 | 52 | 49 | 0,6 |
| B08-1302-05L | M16 X 1,5 LH | ||||||||||||||||
| B10-1302-04R | M16 X 1,5 RH | G 3/8″ | 9 | 130 | 54 | 59,5 | 24,5 | 17 | 32 | 16 | 114 | 18 | 4,5 | 59,5 | 63 | 56,5 | 0,8 |
| B10-1302-05L | M16 X 1,5 LH | ||||||||||||||||
