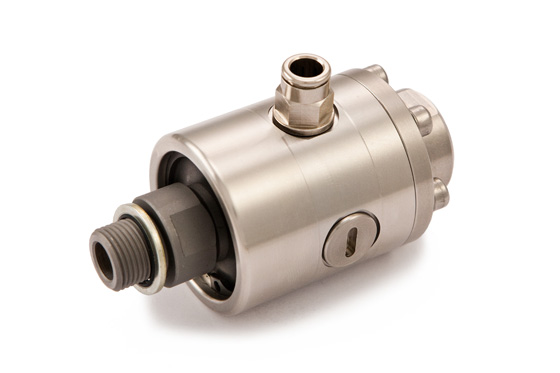

Series C – Rotoflux for High Pressure and High Speed Applications
 |
 |
 |
|
|---|---|---|---|
| Acqua | Water | ¼” ÷ 1½” – 400 bar / 5.800 PSI ¾” – 250 bar / 3.625 PSI |
90°C / 195°F | ¼” ÷ 1½” – 1.500 ¾” – 800 |
| Wasser | Aqua | |||
| Olio idraulico | Hydraulic oil | |||
| Hydraulikol | Aceteite Hidraulico |
| Ordering code | Giunti a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a via simple | ||||||||||
| A | B | ø D | E | ø F | G | H | K | I | L | Kg | |
| C08-1301-01R | G 1/4″ RH | G 1/4″ | 7 | 99 | 49,5 | 19,8 | 17 | 27 | 12 | 87 | 0,8 |
| C10-1301-01R | G 3/8″ RH | G 3/8″ | 9 | 99 | 49,5 | 24,5 | 22 | 27 | 12 | 87 | 0,8 |
| C15-1301-01R | G 1/2″ RH | G 1/2″ | 12 | 106 | 49,5 | 27,5 | 24 | 27 | 14 | 92 | 0,8 |
| C20-1301-01R | G 3/4″ RH | G 3/4″ | 18 | 120 | 74 | 34,5 | 28 | 68 | 16 | 104 | 2,3 |
