Series S – Rotoflux Large Capacity

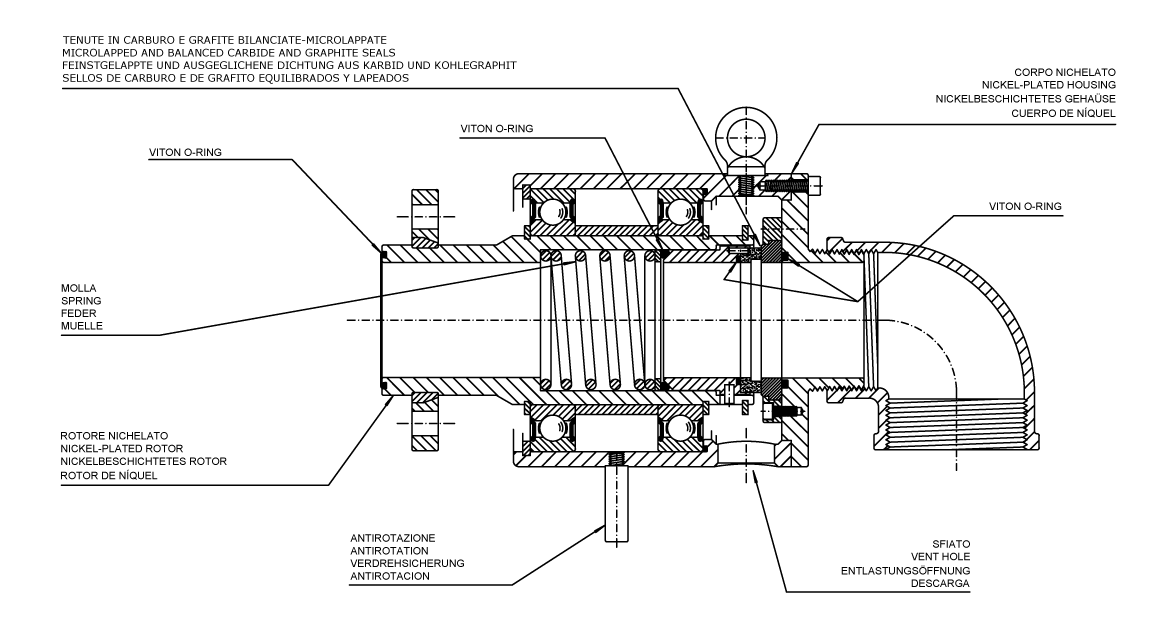

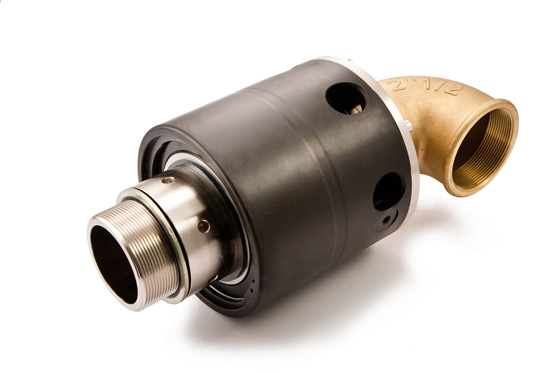

The unions ROTOFLUX S65, S80, S100 and S125, thanks to large free passages, are used when large fluid flows are needed. They are provided with balanced and microlapped seals made with carbide and carbon graphite.

The special design of the seals allows to change, when needed, only the seal rings in order to minimize time and costs of maintenance.

DOWNLOAD PDF
Acqua – Water – Wasser – Agua 10 bar / 145 PSI 95°C / 203°F 750

Ordering code Giunti a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a vía simple

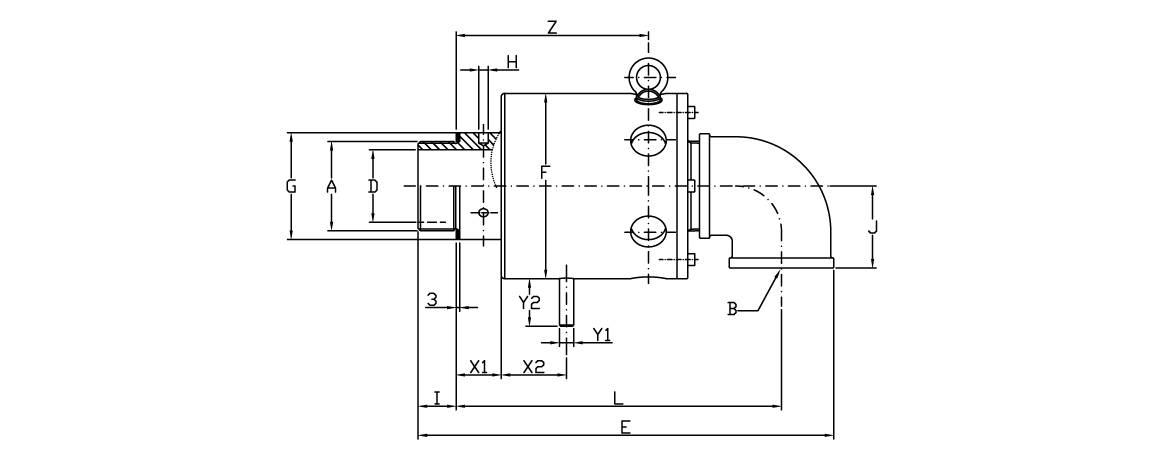

Water A B ø D E ø F ø G ø H I J L X1 X2 ø Y1 Y2 Z Kg
S65-1300-01R G 2″ 1/2 RH G 2″1/2 61 350 156 90 8  6×60° 32 69 274 38 55 12 40 162 17
S65-1300-02L G 2″ 1/2 LH
S80-1300-01R G 3″  RH G 3″ 73 412 188 110 10  6×60° 37 78 321 45 66 12 40 195 23
S80-1300-02L G 3″  LH
Ordering code Giunti a un passaggio – Single passage unions Einweg Drehdurchführungen – Juntas a vía simple

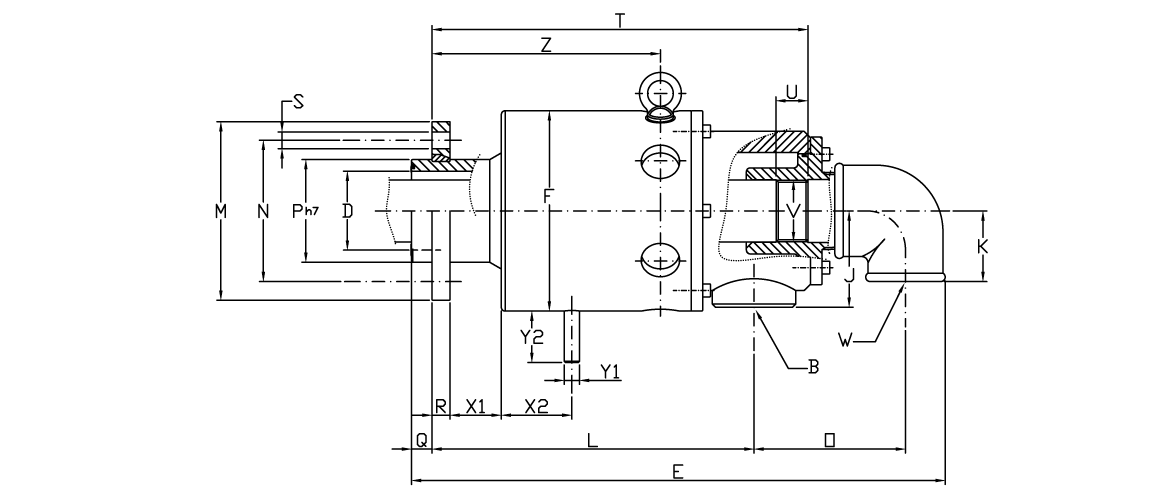

Water B ø D E ø F J L ø M ø N ø P h7 Q R ø S X1 X2 ø Y1 Y2 Z Kg
S65-1300-03F G 2″ 1/2 62 350 156 69 290 139 110 80 16 14 13 6×60° 40 55 12 40 178 18
S80-1300-03F G 3″ 77 412 188 78 337 165 135 100 21 16 13 8×45° 45 66 12 40 211 24
S100-1300-03F G 4″ 98 500 240 94 409 215 170 120 26 20 18 8×45° 51 82 18 46 261 50
S125-1300-03F G 5″ 120 591 282 115 481 245 200 150 31 22 18 8×45° 53 100 18 41 307 85
Interfaccia cliente – Customer interface – Montageanweisungen – Montaje de la junta

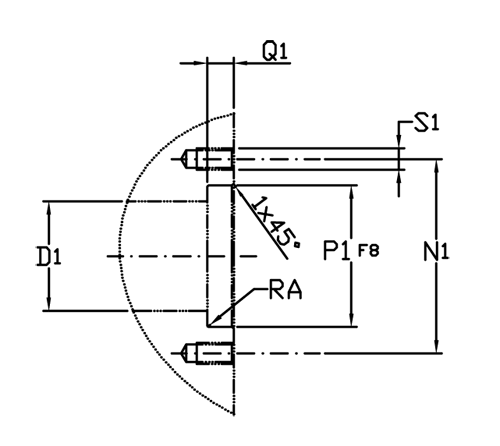

ø D1 ø N1 ø P1 F8 RA Q1 S1
S65 62 110 80 0,4 15 M12 6×60°
S80 77 135 100 0,4 20 M12 8×45°
S100 98 170 120 0,4 25 M16 8×45°
S125 120 200 150 0,4 30 M16 8×45°
Ordering code Giunti due passaggi sifone fisso – Double passage stationary siphon unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo

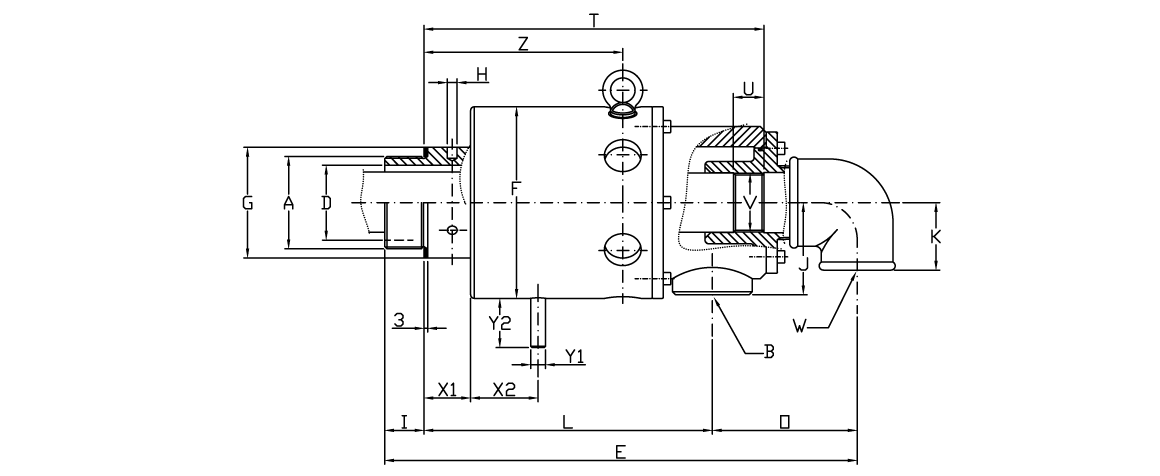

Water A B ø D E ø F ø G ø H I J K L O T U V W X1 X2 ø Y1 Y2 Z Kg
S65-1300-01R-800 G 2″ 1/2 RH G 1″ 1/2 61 416 156 90 8  6×60° 32 75 55 235 118 278 23 G 1″ 1/2 G 1″ 1/2 38 55 12 40 162 20
S65-1300-02L-800 G 2″ 1/2 LH
S80-1300-01R-800 G 3″  RH G 2″ 73 487 188 110 10  6×60° 37 90 70 279 135 331 30 G 2″ G 2″ 45 66 12 40 195 28
S80-1300-02L-800 G 3″  LH
Ordering code Giunti due passaggi sifone rotante – Double passage rotating siphon unions – Zweiwege für drehendes Siphonrohr – Doble vía con sifón rotativo

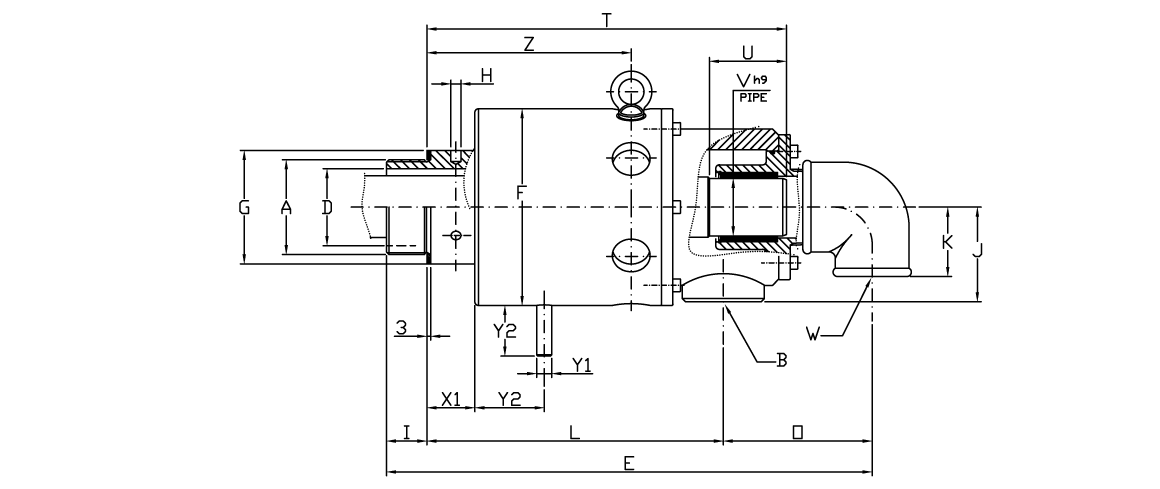

Water A B ø D E ø F ø G ø H I J K L O T U V h9 W X1 X2 ø Y1 Y2 Z Kg
S65-1300-01R-810 G 2″ 1/2 RH G 1″ 1/2 61 416 156 90 8  6×60° 32 75 55 235 118 284 60 45,7 G 1″ 1/2 38 55 12 40 162 20
S65-1300-02L-810 G 2″ 1/2 LH
S80-1300-01R-810 G 3″  RH G 2″ 73 487 188 110 10  6×60° 37 90 70 279 135 337 70 57,7 G 2″ 45 66 12 40 195 28
S80-1300-02L-810 G 3″  LH
Ordering code Giunti due passaggi sifone fisso – Double passage stationary siphon  unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo
Water B ø D E ø F J K L ø M ø N O ø P h7 Q R ø S T U V W X1 X2 ø Y1 Y2 Z Kg
S65-1300-03F-800 G 1″ 1/2 62 416 156 75 55 251 139 110 118 80 16 14 13 6×60° 294 23 G 1″ 1/2 G 1″ 1/2 40 55 12 40 178 21
S80-1300-03F-800 G 2″ 77 487 188 90 70 295 165 135 135 100 21 16 13 8×45° 347 30 G 2″ G 2″ 45 66 12 40 211 34
S100-1300-03F-800 G 2″ 1/2 98 589 240 110 78 361 215 170 155 120 26 20 18 8×45° 421 35 G 2″ 1/2 G 2″ 1/2 51 82 18 46 261 60
S125-1300-03F-800 G 3″ 120 718 282 120 78 423 245 200 210 150 31 22 18 8×45° 508 45 G 3″ G 3″ 53 100 18 41 307 100
Ordering code Giunti due passaggi sifone rotante – Double passage rotating siphon unions – Zweiwege für drehendes Siphonrohr – Doble vía con sifón rotativo
Water B ø D E ø F J K L ø M ø N O ø P h7 Q R ø S T U ø V H9 W X1 X2 ø Y1 Y2 Z Kg
S65-1300-03F-810 G 1″ 1/2 62 416 156 75 55 251 139 110 118 80 16 14 13 6×60° 300 60 45,7 G 1″ 1/2 40 55 12 40 178 21
S80-1300-03F-810 G 2″ 77 487 188 90 70 295 165 135 135 100 21 16 13 8×45° 353 70 57,7 G 2″ 45 66 12 40 211 34
S100-1300-03F-810 G 2″ 1/2 98 589 240 110 78 361 215 170 155 120 26 20 18 8×45° 430 80 74,6 G 2″ 1/2 51 82 18 46 261 60
S125-1300-03F-810 G 3″ 120 718 282 120 78 423 245 200 210 150 31 22 18 8×45° 518 100 87,6 G 3″ 53 100 18 41 307 100
Interfaccia cliente – Customer interface – Montageanweisungen – Montaje de la junta
ø D1 ø N1 ø P1 F8 RA Q1 S1
S65 62 110 80 0,4 15 M12 6×60°
S80 77 135 100 0,4 20 M12 8×45°
S100 98 170 120 0,4 25 M16 8×45°
S125 120 200 150 0,4 30 M16 8×45°
