Series M – Rotoflux for High Pressure and Low Speed Single and Double Passage

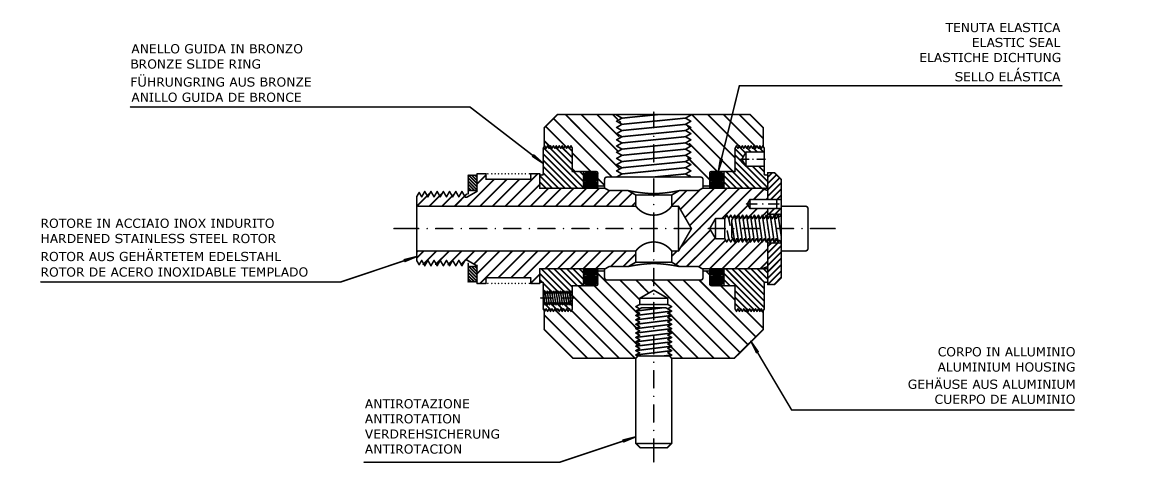

The ROTOFLUX unions model M, thanks to the special design of the seals and the ground, hardened and lapped, surface of the rotor, may operate with low friction and wear, at low rotation speed with high fluid pressure, even for long time.
Also they may remain inactive for long periods without seizing. An antirotation pin is provide to prevent the rotation; stop it with a slack slot.
Avoid to operate the union under pressure surges, and at the max suggested operating limits, without consulting ROTOFLUX’s customer service.
 |
 |
 |
|
|---|---|---|---|
| Aria – Air – Luft – Aire | 10 bar / 145 PSI | 90°C / 195°F | 300 |
| Olio idraulico | Hydraulic oil | 300 bar / 3.350 PSI | 60 bar / 870 PSI – 300 300 bar / 4.350 – 20 |
|
| Hydraulikol | Aceteite Hidraulico |

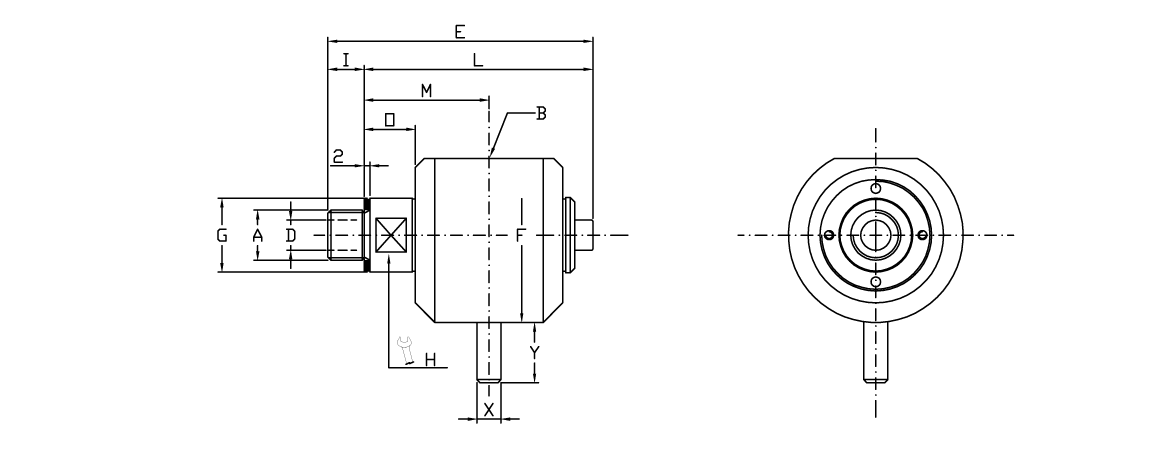

| Ordering code | Giunto a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a vía simple | |||||||||||||
| A | B | ø D |
E | ø F |
ø G |
H | I | L | M | O | X | Y | Kg | |
| M108-1000-01R | G 1/4″ RH | G 1/4″ | 7 | 77 | 48 | 19,5 | 17 | 12 | 65 | 36 | 16 | 8 | 20 | 0,4 |
| M110-1000-01R | G 3/8″ RH | G 3/8″ | 10 | 88 | 58 | 24,5 | 22 | 12 | 76 | 41,5 | 17 | 8 | 20 | 0,5 |
| M115-1000-01R | G 1/2″ RH | G 1/2″ | 12 | 88 | 58 | 27,5 | 24 | 14 | 74 | 39,5 | 15 | 8 | 20 | 0,5 |
| M120-1000-01R | G 3/4″ RH | G 3/4″ | 17,5 | 119 | 78 | 34,5 | 28 | 16 | 103 | 56 | 22 | 8 | 20 | 1,3 |

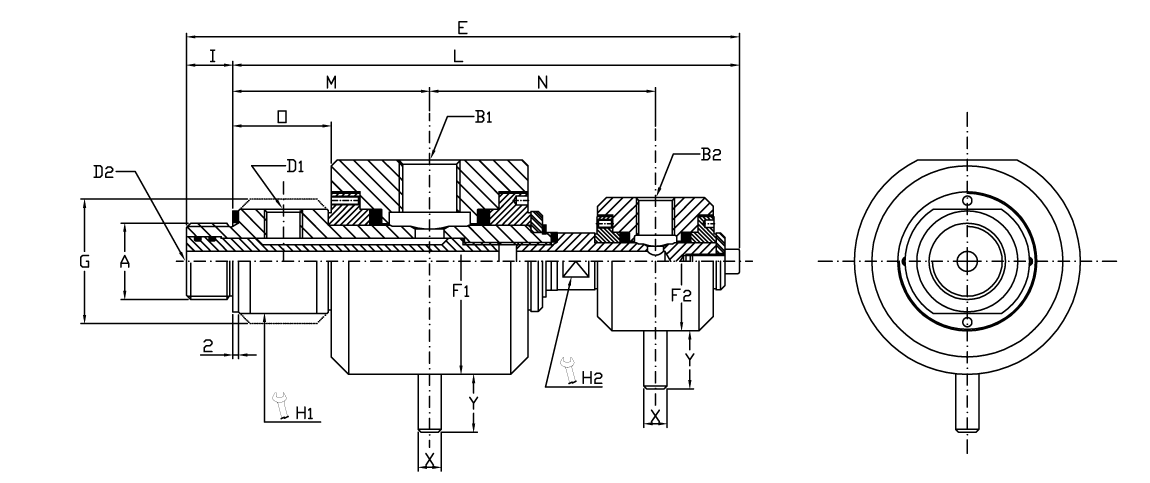

| Ordering code | Giunto doppio passaggio – Double passage union 2-Wege Drehdurchführungen – Junta de doble vía | ||||||||||||||||||
| A | B1 | B2 | D1 | ø D2 | E | ø F1 | ø F2 | ø G | H1 | H2 | I | L | M | N | O | X | Y | Kg | |
| M120-1002-11R | G 3/4″ RH | G 1/2″ | G 1/4″ | G 1/4″ | 7 | 191 | 78 | 48 | 43 | 38 | 17 | 16 | 175 | 68 | 78 | 34 | 8 | 20 | 1,3 |
