Series L – Rotoflux Low Torque

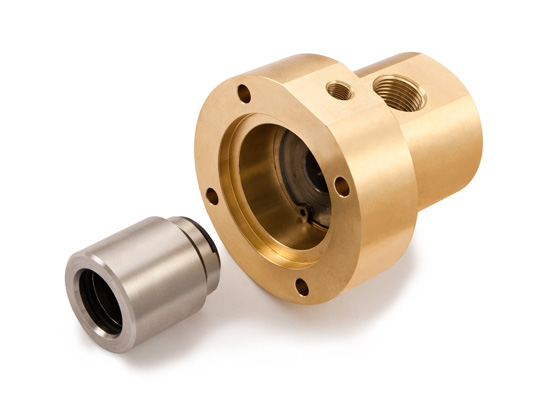

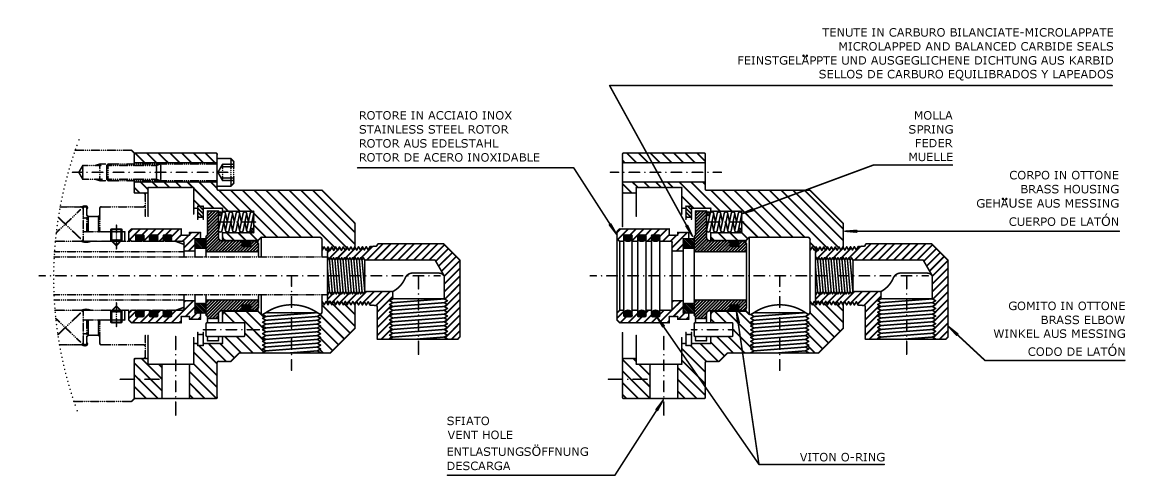

These unions are available with balance and microlapped carbide to carbide seals.
Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C). Do not use the unions at max application limits without consulting ROTOFLUX.
 |
 |
 |
|
|---|---|---|---|
| Acqua – Water – Wasser – Agua | 16 bar / 232 PSI | 95°C / 203°F | 5.000 |
| Ordering code | Giunti due passaggi sifone fisso – Double passage stationary siphon unions – Zweiwege für stehendes Siphonrohr – Doble vía con sifón fijo | |||||||||||||||||||

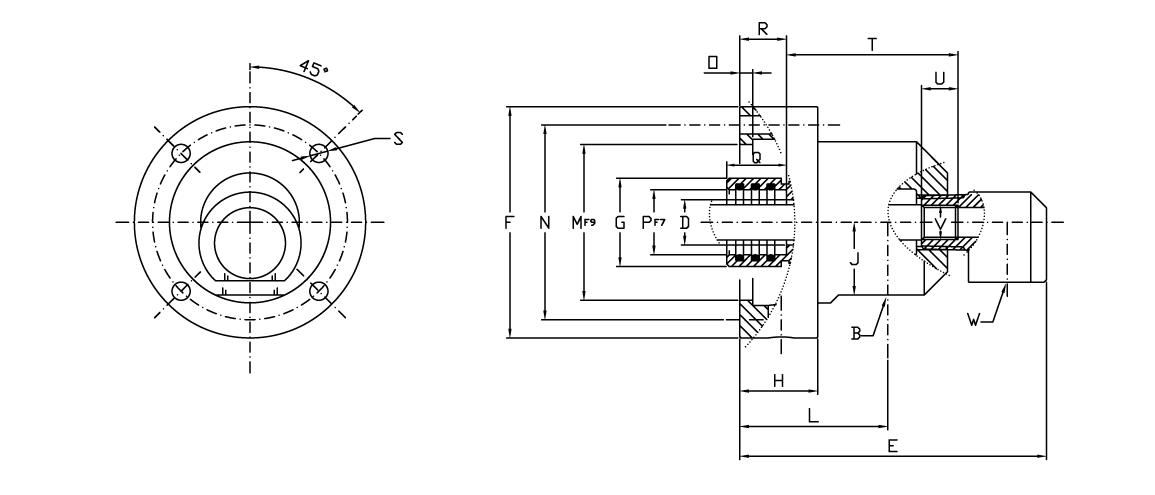

| Water | B | ø D | E | ø F | G | H | J | L | ø M F9 | ø N | O | ø P F7 | Q | R | S | T | U | V | W | Kg |
| L20-1301-01P-800 | G 1/2″ | 17,5 | 118 | 89 | 34 | 30 | 28 | 57 | 60 | 75 | 5 | 25 | 25 | 18 | 7 4×90° | 66 | 14 | G 1/4″ | G 1/2″ | 2,9 |
| L25-1301-01P-800 | G 3/4″ | 24 | 128 | 98 | 41 | 30 | 32 | 59 | 65 | 85 | 5 | 30 | 30 | 18 | 7 4×90° | 75 | 16 | G 3/8″ | G 1/2″ | 3,4 |
| Ordering code | Giunti due passaggi sifone rotante – Double passage rotating siphon – Zweiwege für drehendes siphonrohr – Doble vía con sifón rotativo | |||||||||||||||||||

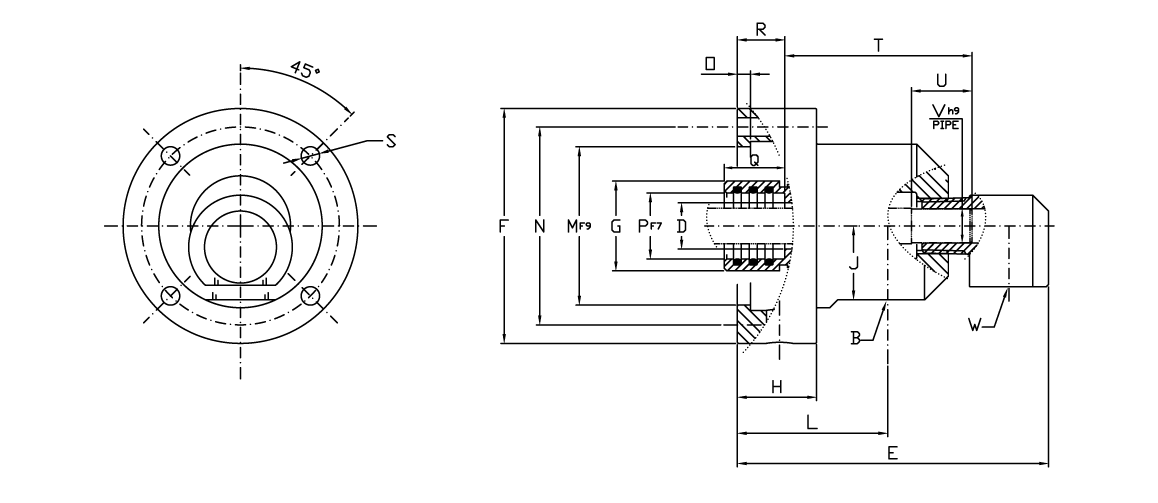

| Water | B | ø D | E | ø F | ø G | H | J | L | ø M F9 | ø N | O | ø P F7 | Q | R | S | T | U | ø V h9 | W | Kg |
| L20-1301-01P-810 | G 1/2″ | 17,5 | 118 | 89 | 34 | 30 | 28 | 57 | 60 | 75 | 5 | 25 | 25 | 18 | 7 4×90° | 72 | 24 | 12,9 | G 1/2″ | 2,9 |
| L25-1301-01P-810 | G 3/4″ | 24 | 128 | 98 | 41 | 30 | 32 | 59 | 65 | 85 | 5 | 30 | 30 | 18 | 7 4×90° | 78 | 25 | 15,9 | G 1/2″ | 3,4 |

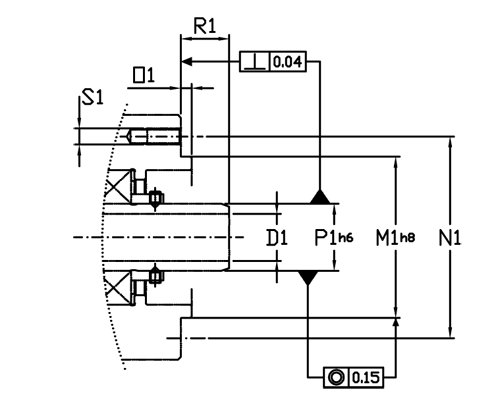

| Interfaccia cliente- Customer interface – Montageanweisungen – Montaje de la junta | |||||||
| ø D1 | ø M1 h8 | ø N1 | O | ø P1 h6 | ø R1 | S1 | |
| L20 | 17,5 | 60 | 75 | 5 | 25 | 18 | M6 4×90° |
| L25 | 24 | 65 | 85 | 5 | 30 | 18 | M6 4×90° |
