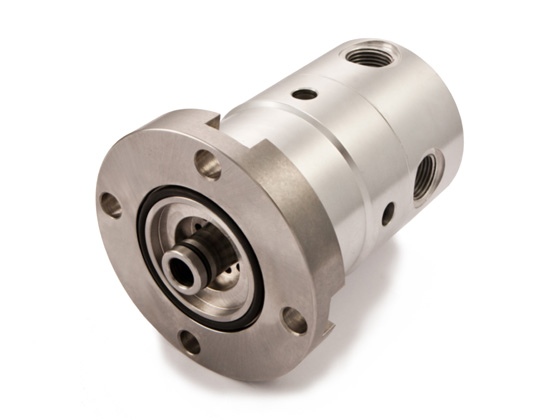

Series D – Rotoflux Double Passage for Air, Vacuum and Hydraulic Oil

The ROTOFLUX unions model D15 with two separate passages are used to operate clutches or rotating pistons with air or oil.

The same type of fluid must be used for the two passages to avoid eventual mixture.

Do not use the unions at max application limits without consulting Rotoflux.


Aria – Air – Luft – Aire 10 bar / 145 PSI 90°C / 195°F 1.500
Vuoto – Vacuum – Vakuum – Vacio 7 kPa / 2″ Hg
Olio idraulico | Hydraulic oil 10 bar / 145 PSI 3.500
Hydraulikol | Aceteite Hidraulico

Ordering code Giunto doppio passaggio – Double passage union 2-Wege Drehdurchführungen – Juntas doble vía

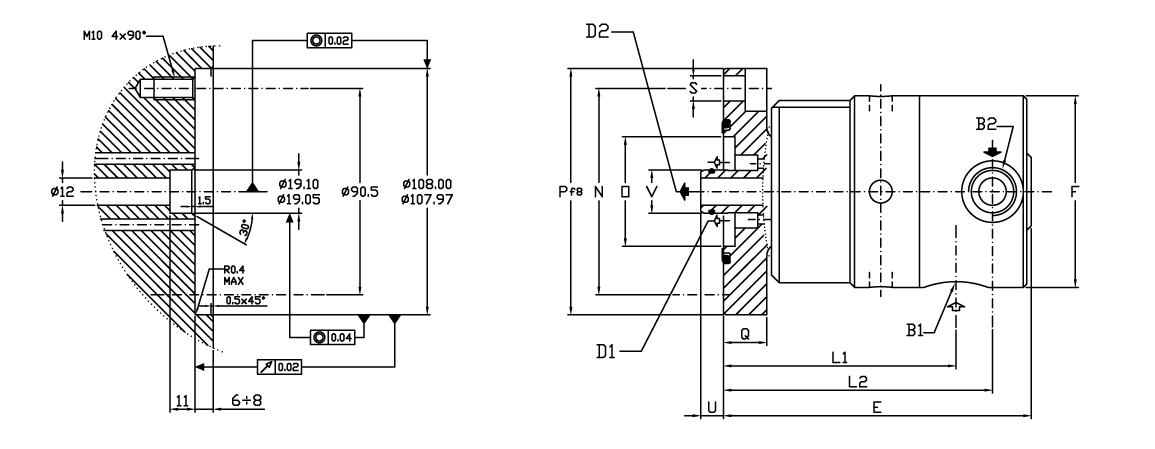

B1 – B2 D1 D2 E ø F L1 L2 ø N ø O ø P f8 Q ø S U ø V Kg
D15-302-03F G 1/2″ 126 mm2 ø12 113 mm2 135 84 102 119 90,5 48 108 19 11 4×90° 10 19 3
