Series Z – Rotoflux for Continuos Casting Applications

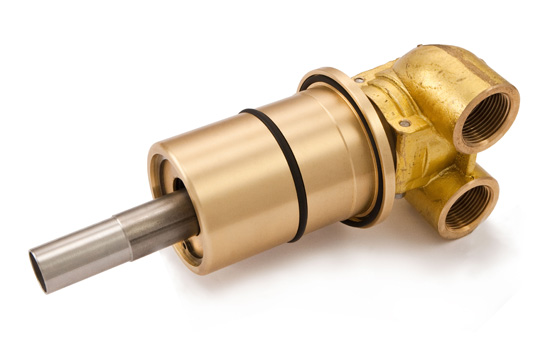

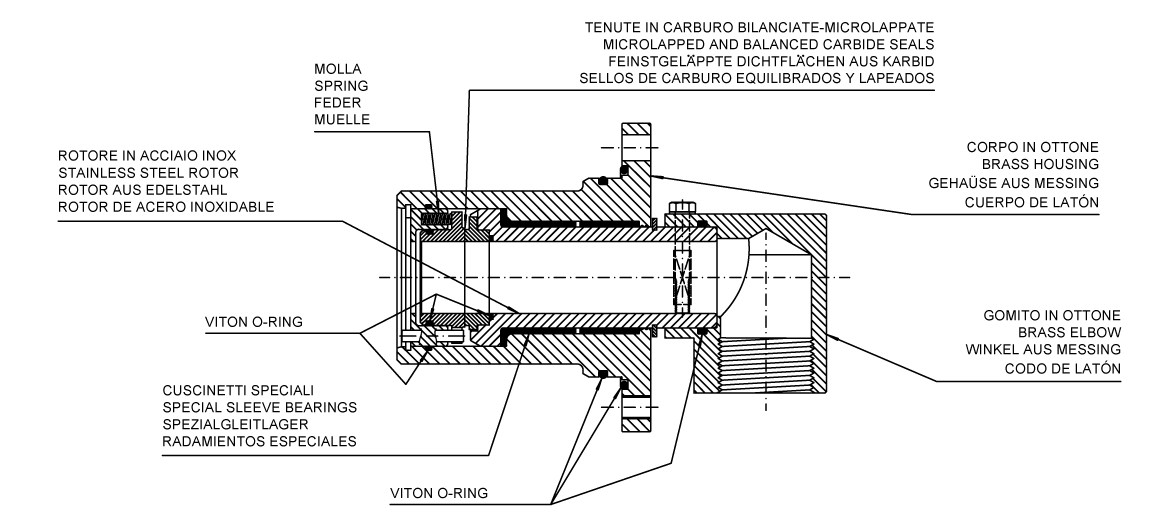

The unions of the model Z are specifically designed to be mounted inside the cylinders of the continuous casting line. The seals, in carbide for dirty water service, are balanced, lapped and set to withstand to pressure peaks caused by steam bubbles or bumps of different kind.
The springs, located out of the fluid flow, avoid deposits and scales. Do not use unions at max application limits without consulting ROTOFLUX.
 |
 |
 |
|
|---|---|---|---|
| Acqua – Water – Wasser – Agua | 10 bar / 145 PSI | 120°C / 248°F | 100 |

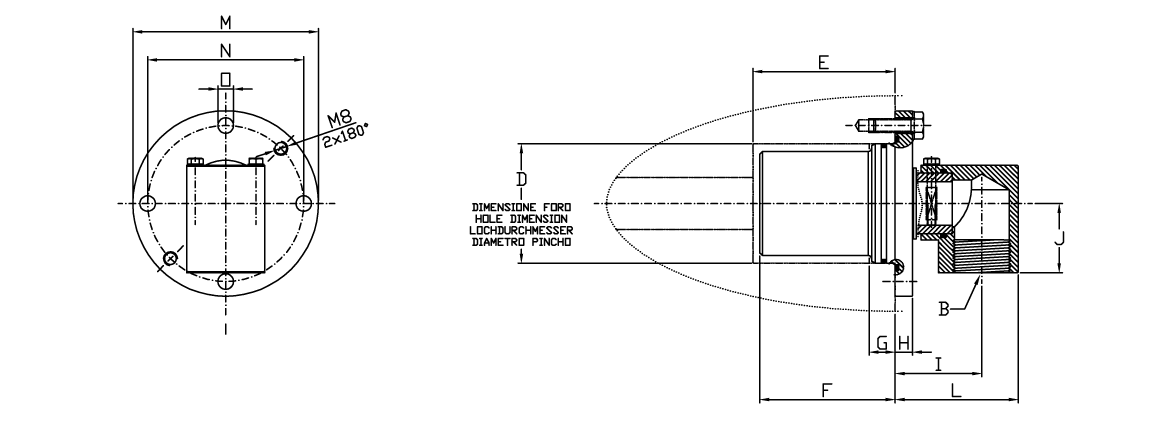

| Ordering code | Giunti a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a vía simple | ||||||||||||
| D seal | B | ø D | E | F | G | H | I | J | L | ø M | ø N | ø O | Kg |
| Z20-1307-60Z | G 3/4″ | 50,1 – 50,2 | 63 | 60 | 16 | 8 | 52 | 28 | 71 | 88 | 71 | 9 4×90° | 1,5 |
| Z25-1301-60Z | G 1″ | 71 – 71,15 | 81 | 78 | 12,5 | 10 | 50 | 40 | 71 | 108 | 90 | 9 4×90° | 2,3 |
| Z40-1301-60Z | G 1″ 1/2″ | 71 – 71,15 | 91 | 87,5 | 12,5 | 10 | 61 | 45 | 90 | 109 | 92 | 9 4×90° | 4,5 |

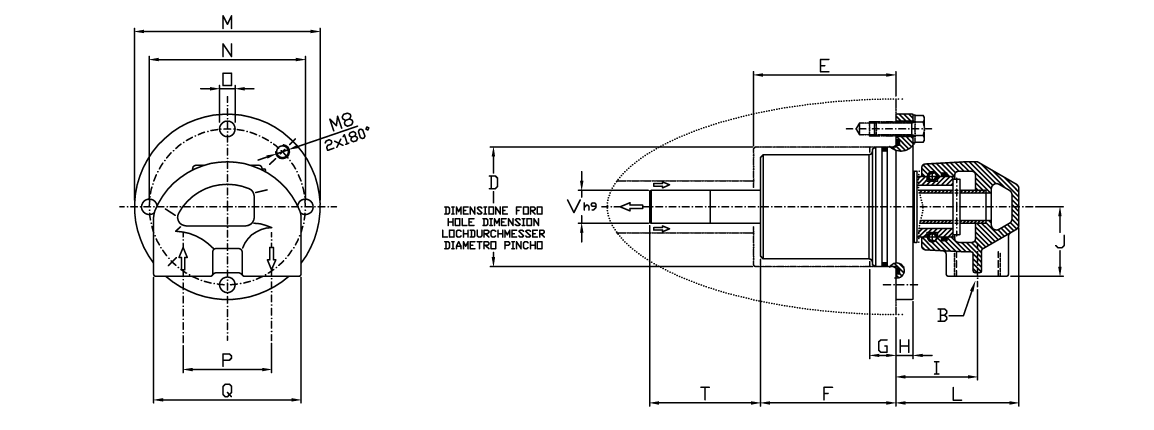

| Ordering code | Giunti due passaggi sifone fisso – Double passage stationary siphon – Zweiwege für stehendes Siphonrohr – Double vía con sifón fijo | ||||||||||||||||
| D seal | 2 x B | ø D | E | F | G | H | I | J | L | ø M | ø N | ø O | P | Q | T | ø V h9 | Kg |
| Z20-1307-61Z-800 | G 3/4″ | 50,1 – 50,2 | 63 | 60 | 16 | 8 | 52 | 40 | 71 | 88 | 71 | 9 4×90° | 51 | 85 | 48 | 13 | 2 |
| Z25-1301-61Z-800 | G 3/4″ | 71 – 71,15 | 81 | 78 | 12,5 | 10 | 47 | 40 | 71 | 108 | 90 | 9 4×90° | 51 | 85 | 64 | 19 | 3 |
| Z40-1301-61Z-800 | G 1″ | 71 – 71,15 | 91 | 87,5 | 12,5 | 10 | 54 | 45 | 90 | 109 | 92 | 9 4×90° | 64 | 108 | 64 | 28 | 5 |
