Series V – Rotoflux in the Shaft Mounting

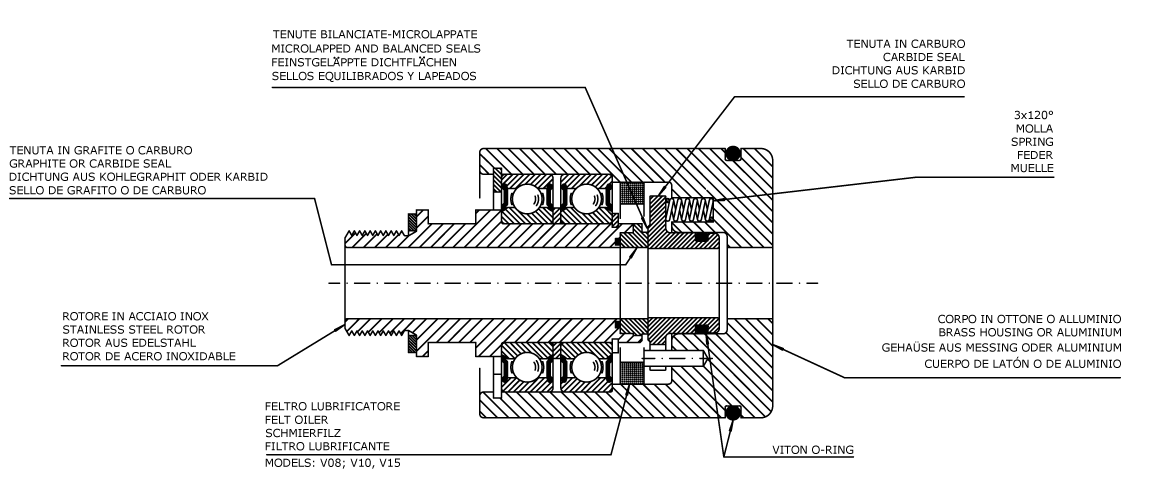

The unions of the model V are designed for inside the shaft mounting with short overhang. They are available with two different micro-lapped sealing assemblies:

  • N model (Standard) with carbon graphite to carbide seals, for air, vacuum and hydraulic oil at 20 bar max pressure.
  • D model (Heavy duty) with carbide to carbide seals for hydraulic oil applications.

The model V06, very short, is provided with a center spring and with N seals in stainless steel to carbon graphite or with D seals in stainless steel against bronze. Do not use the unions at max application limits without consulting ROTOFLUX.


Aria – Air – Luft – Aire 10 bar / 145 PSI 120°C / 248°F 3.500
Vuoto – Vacuum – Vakuum – Vacio 7 kPa / 2″ Hg
Olio idraulico | Hydraulic oil 50 bar / 725 PSI
Hydraulikol | Aceteite Hidraulico

Ordering code Giunti a un passaggio – Single passage unions – Einweg Drehdurchführungen – Juntas a vía simple

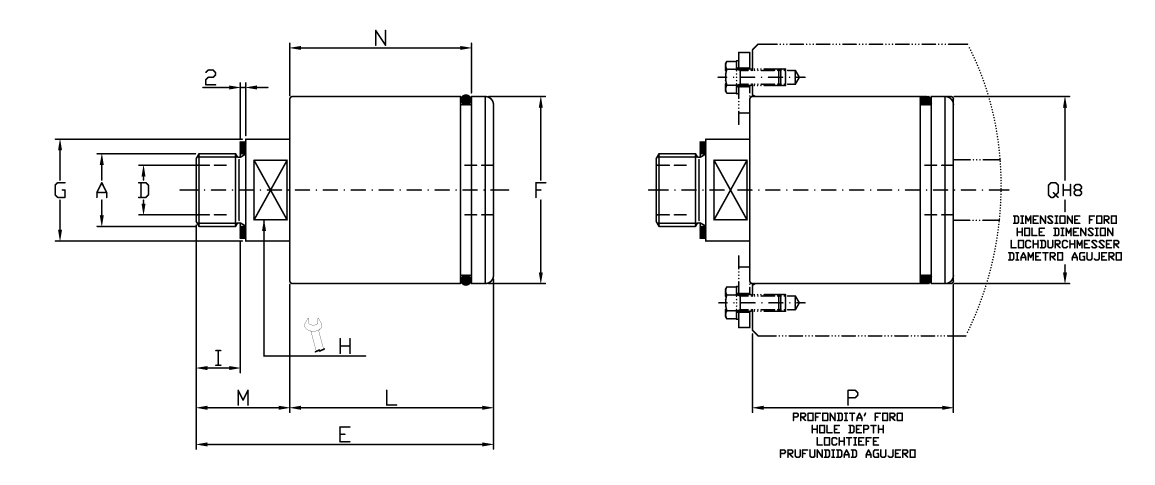

Air – Vacuum Hydraulic Oil A ø D E ø F ø G H I L M N P ø Q H8 Kg
V06-302-01R V06-301-01R G 1/4″  RH 3,5 71 28,4 20 15 11 48 23 28 47,5 28,5 0,2
V08-1302-01R V08-1301-01R G 1/4″  RH 7 82 44,3 20 17 11 59 23 50 58,5 44,5 0,6
V10-1302-01R V10-1301-01R G 3/8″  RH 9 91 49 25 17 13 64 27 54 63,5 49,2 0,7
V15-1302-01R V15-1301-01R G 1/2″  RH 13 96 58,5 30 24 13 68 28 58 67,5 58,7 1,3
