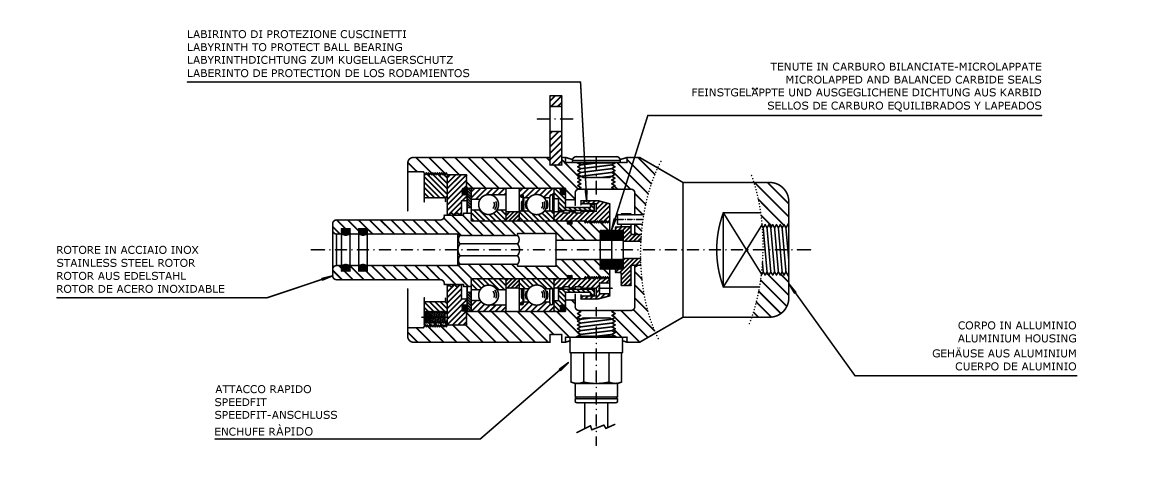

Series B – Rotoflux for High Speed and Dry Run, Machine Tools Applications
This ROTOFLUX unions are used to cool the spindles of the machine tools.
The very special design allows to minimize the space required for their installation.
 |
 |
 |
 |
|
|---|---|---|---|---|
| Lubrorefrigerante | Coolant | 100 bar / 1.450 PSI | 90°C / 195°F | 15.000 20.000 25.000 30.000 |
60 μ (MAX 100) |
| Kuhlschmiermittel | Liquide Frigeradordo | ||||
| Rotazione a secco | Dry run | / | / | / | |
| Trockenlauf | Rotaciones en seco |
| Ordering code | RPM | Kg |
| B08-1651-01E | 15.000 | 0,8 |
| B08-1601-01E | 20.000 | |
| B08-1611-01E | 24.000 | |
| B08-1621-01E | 30.000 |
| Ordering code | RPM | Kg |
| B08-1653-01E | 15.000 | 0,8 |
| B08-1603-01E | 20.000 | |
| B08-1613-01E | 24.000 | |
| B08-1623-01E | 30.000 |
