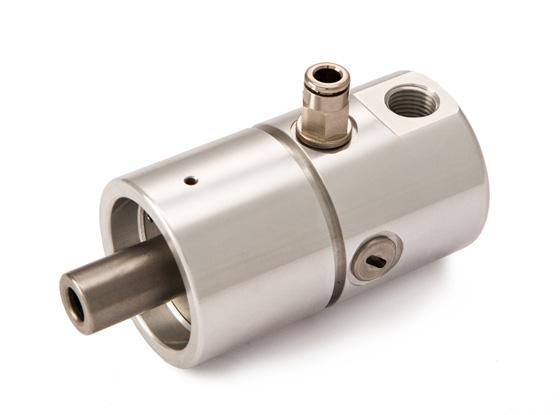

Series B – Rotoflux for High Speed, Coolant, Air, Dry Run, Machine Tools Applications
This ROTOFLUX unions are used to cool the spindles of the machine tools.
The very special design allows minimize the space required for their installation.
 |
 |
 |
|
|---|---|---|---|
| Acqua | Water | ¼” ÷ 1½” – 400 bar / 5.800 PSI ¾” – 250 bar / 3.625 PSI |
90°C / 195°F | ¼” ÷ 1½” – 500 ¾” – 800 |
| Wasser | Aqua | |||
| Olio idraulico | Hydraulic oil | |||
| Hydraulikol | Aceteite Hidraulico |
| Ordering code | RPM | Kg |
| B08-1652-01E | 15.000 | 0,8 |
| B08-1602-01E | 20.000 | |
| B08-1612-01E | 24.000 | |
| B08-1622-01E | 30.000 |
| Ordering code | RPM | Kg |
| B08-1654-01E | 15.000 | 0,8 |
| B08-1604-01E | 20.000 | |
| B08-1614-01E | 24.000 | |
| B08-1624-01E | 30.000 |
